Ultra 60 Bed Head Protector

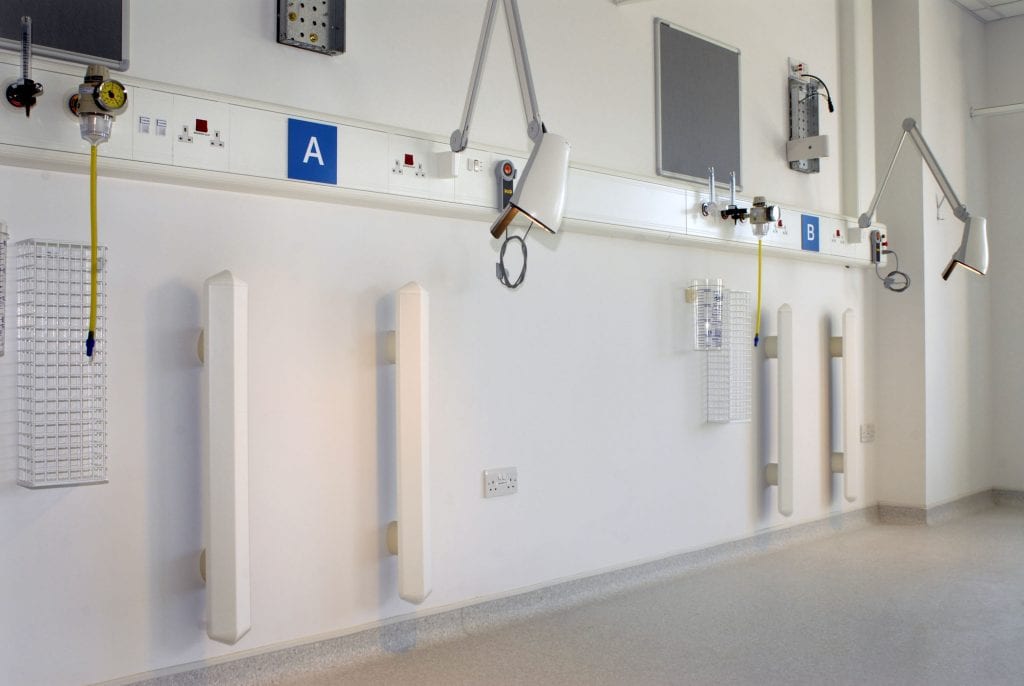

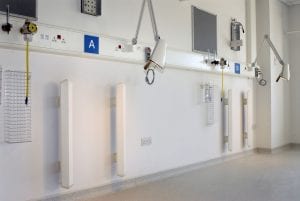

Yeoman Shield Ultra 60 Bed Head Protectors are excellent for guarding walls from the bumps and scrapes that can be made with the frame work and wheels of beds, trolleys and drip stands.

The Ultra 60 Rail can be fitted horizontally, but more usually vertically in pairs.



N.B. We would not recommend installing an horizontal Bed Head Protector if adjustable morotised beds are in use. In such circumstances we always advise fitting vertical pairs.

  • Fire Rated - Please see further details below
  • Protects walls at head of beds
  • Fitted vertical in pairs
  • Install horizontally (not advised for use with motorised bead raisers)

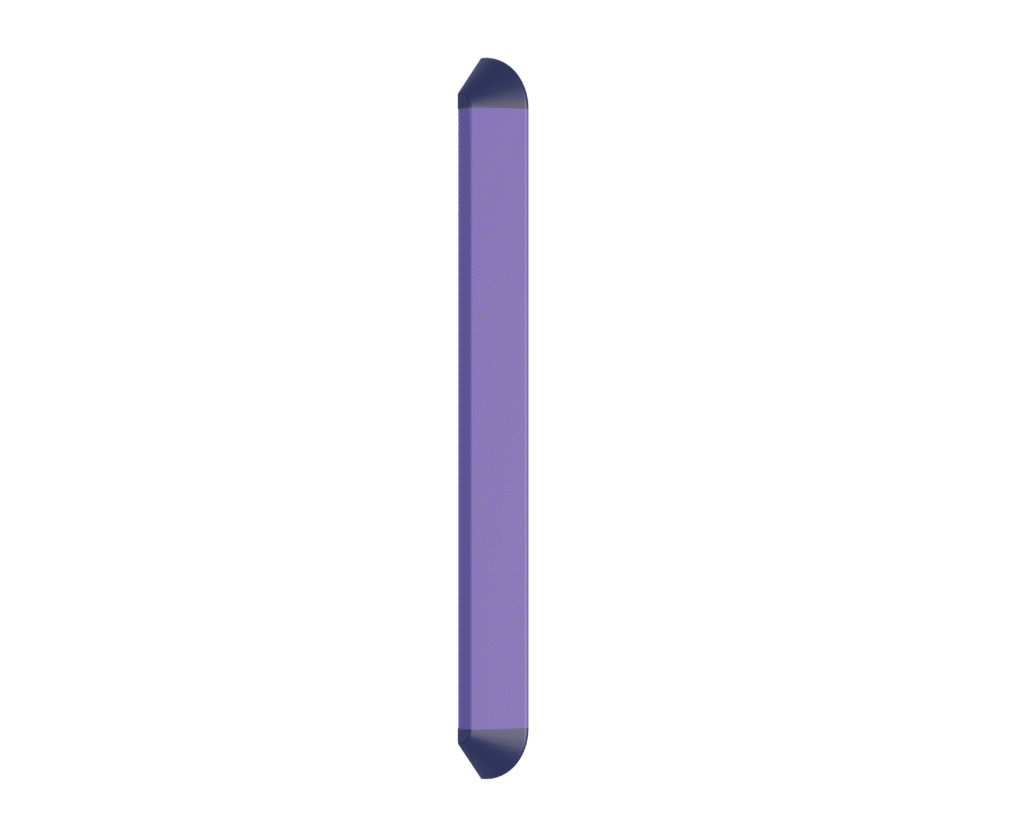

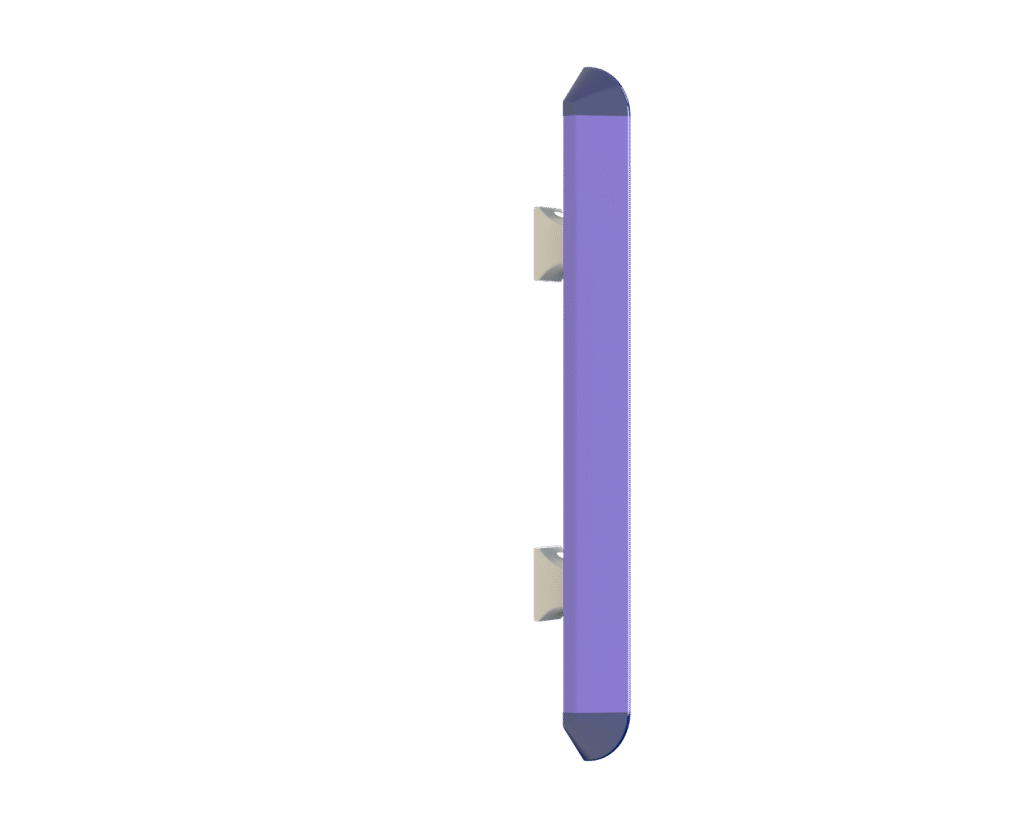

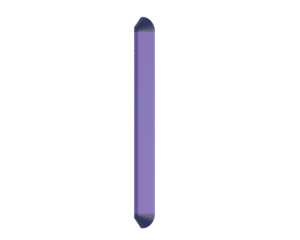

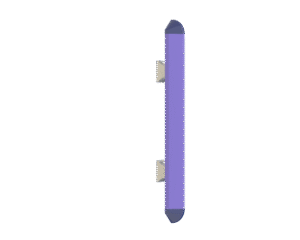

  • Flat back to wall or standoff options

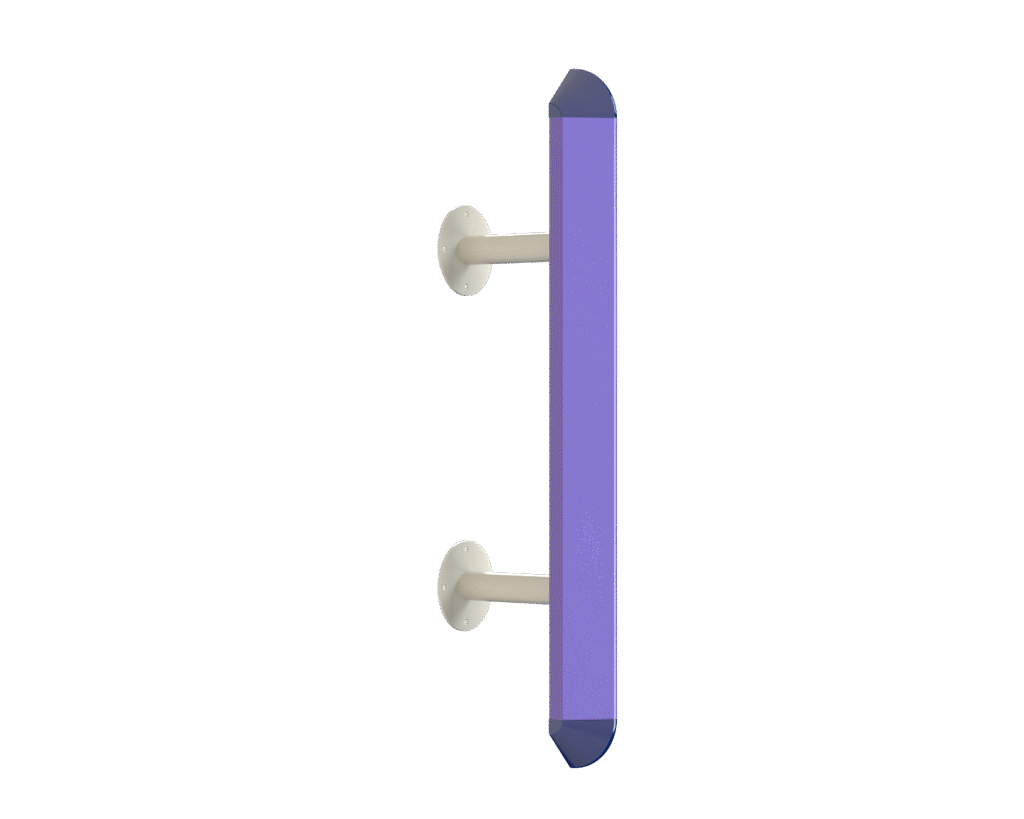

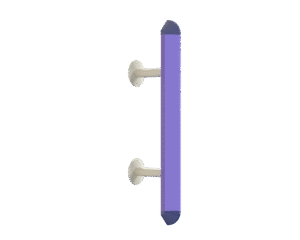

  • Metal dumbbell spacers available
  • Choice of colours
  • Can also be floor mounted as trolley/bed stops

The Ultra Bed Head Protector is available has a 60mm projection making it an ideal solution to protect bed head walls and hospital services positioned at the head of beds.

These can be fitted horizontally or vertically and available in singles or pairs.

The ultra bead head protector range provides wall protection from beds that could otherwise damage equipment, paint and plaster saving the hospital expensive repair costs.

Composition:

  • Rail & Accessories extruded Vinylac
  • Stop end injection moulded
  • Vinylac or MDF Core
  • Standard Spacers PVCu
  • Special Metal Dumbbell Brackets.

Dimensions:

  • 90mm Deep
  • 60mm/ 110mm projection on standard spacers (special metal 150mm spacers available)
  • 900/1200mm length

Colours:

  • From our standard range
  • Special colours available subject to quantity

Finishes:

  • Stippled

90 mm deep

900 mm or 1200 mm lengths

60 mm projection when fitted flat to wall

110 mm projection when fitted on standard spacers

On-Trend Range

Premier Colour Range

Ancillary Colour Range

Extruded PVCu Rail

PVCu injection Moulded accessories

Solid timber core

PVCu core

Stippled

Yeoman Shield Ultra 60 Bed Head Protectors are excellent for guarding walls from the bumps and scrapes that can be made with the frame work and wheels of beds, trolleys and drip stands.

The Ultra 60 Rail can be fitted horizontally, but more usually vertically in pairs.



N.B. We would not recommend installing an horizontal Bed Head Protector if adjustable morotised beds are in use. In such circumstances we always advise fitting vertical pairs.


Yeoman Shield Fire Test Information

Textured Extruded Protection Products – B, s2, d0

BS EN 13823: 2010 + A1: 2014.

BS EN ISO 11925 – 2: 2010.

BS EN 13501 – 1: 2007  + A1: 2009.

BS 476: Part 7: 1997 – The surface spread of flame products – Class 1Y (Class 1 is the best classification in this test).

BS 476: Part 6: 1989 + A1: 2009 – Fire propagation for products – Class O – As defined in the latest building regulations, approved document B (Fire Safety).

Installation Guide

Download your Installation Guide for this product below:

Installation Guide
